Serial Experimental 00
| Field | Value |
|---|---|
| Category | Hardware |
| Difficulty | Easy |
| Points | 50 |
| Author | Eun0us |
| CTF | Espilon 2026 |
Description
You gained access to a split UART debug interface from a WIRED-MED prototype.
- TX (read):
tcp/<host>:1111 - RX (write):
tcp/<host>:2222
Investigate serial diagnostics, recover the maintenance token, then unlock the node.
Format: ESPILON{...}
TL;DR
Connect to the split UART interface. Query diag.uart, diag.eeprom, and diag.order
on the RX port. Decode three fragments (one is plain hex, one is XOR-obfuscated, one is
ASCII-encoded) and concatenate them to form the token LAIN-SERIAL-00. Submit with
unlock LAIN-SERIAL-00 to receive the flag.
Tools
| Tool | Purpose |
|---|---|
nc |
Connect to TX and RX ports |
| Python 3 | XOR decoding of fragment B |
Solution

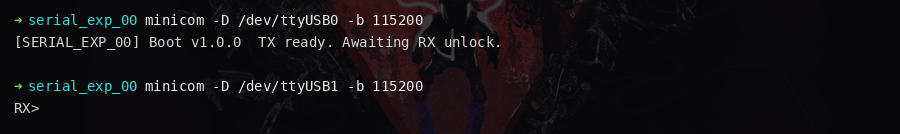

Step 1 — Open both channels
# Terminal 1 — read output (TX)
nc <host> 1111
# Terminal 2 — send commands (RX)
nc <host> 2222
Step 2 — Query the diagnostic commands
In the RX terminal:
diag.uart
diag.eeprom
diag.order
Watch the TX terminal for responses.
Step 3 — Recover the fragments
Each diagnostic command returns a fragment:
Fragment A — from diag.uart:
frag_a_hex=4c41494e
Decode: bytes.fromhex("4c41494e").decode() → LAIN
Fragment B — from diag.eeprom:
frag_b_xor_hex=4056415a525f
xor_key=0x13
Decode:
data = bytes.fromhex("4056415a525f")
key = 0x13
result = bytes(b ^ key for b in data)
print(result.decode()) # SERIAL
Fragment C — from diag.order:
frag_c_hex=3030
Decode: bytes.fromhex("3030").decode() → 00
Step 4 — Build the maintenance token
Concatenate in the order specified by diag.order:
LAIN + "-" + SERIAL + "-" + 00 = LAIN-SERIAL-00
Step 5 — Unlock the node
In the RX terminal:
unlock LAIN-SERIAL-00
The flag is returned on the TX terminal.
Key concepts
- Split UART: TX and RX are on separate TCP ports — mirrors real hardware where TX/RX lines are physically separated. You must open both simultaneously.
- Hex encoding: Raw bytes presented as hex strings are common in serial diagnostic outputs.
- XOR obfuscation: Fragment B uses a single-byte XOR key; knowing the key is trivial once you have the hint.
Flag
ESPILON{l41n_s3r14l_3xp_00}
